Outdoor Air Quality

Kunak air Pro

The air quality monitoring station

GRECiOT in collaboration with Kunak presents the Kunak air PRO air quality measuring station.
After 8 years of research, development and pilot installations, the most accurate Air Quality Measurement Station was created.
Easy installation and change of consumables, remote sensor calibration and the simplest, secure Cloud real-time data management system.

Features

instalationfinal icons kunak

Easy & Fast installation

Set up in less than 10 minutes with
visual diagnosis in a built-in display.

catr final icons kunak

Cartridges system

Replace and combine pollutant
sensors with a plug & play system.

pro final icons kunak

Proven accuracy

Proven as the best-in-class system
by independent organizations.

easy final icons kunak

Easy calibration

Adjust the baseline and span
remotely.

add final icons kunak

Add environmental sensors

Connect wind, rain, noise, and
other sensors.

air final icons kunak

Air quality platform

Visualize, analyse and manage
your data in the cloud.

fully final icons kunak

Fully autonomous

Autonomous operation with its
built-in battery and solar panel.

real time final icons kunak

Real-time data

Access to your data and alarms
in real-time.

multi final icons kunak

Multi pollutant

Measure up to 5 gases and
particulate matter at once.

Specifications

Dimensions

257 x 270 x 225 mm

Weight

<3.5 kg

Enclosure

PMMA & Polycarbonate & Stainless steel

Operating temp

-20 ºC to 60 ºC

Operating RH

0 to 99 %RH

IP rating

IP65

Battery

Lithium 2.9Ah or 26Ah

External supply

7 – 12 Vdc. Charger or Solar panel

Autonomy

24/7 with solar panel or charger

Power consumption

0.08-1.2W (depending on configuration)



Communications



Multi-Band 2G/3G/4G (LTE-FDD/LTE-TDD/UMTS/HS-

DPA/HSUPA/HSPA+/GSM/GPRS/EDGE) or Ethernet

GNSS

GPS, GLONASS, GALILEO and BEIDOU



Gas sensors

CO, CO2, NO, NO2, O3, SO2, H2S, NH3 & VOCs

PM sensor

PM1, PM2.5 & PM10

Internal status

Temp./Battery/Charging voltage & current/Signal

Built-in sensors

Temp./Humidity/Atmospheric pressure/Dew point



#3: Noise meter & Digital output (Relay)

Sampling freq.

3Hz gases, 1Hz particles

Avg. periods

From 10 seconds to a maximum of 24 hours

Sending periods

From 5 minutes to a maximum of 24 hours

Remote management

Bidirectional communications

Remote configuration and calibration

SIM

Embedded eSIM and SIM holder




Additional #4: Modbus RS485 RTU & 4-20mA & Configurable
Probes & power supply output
Actuators #5: Anemometer & Rain gauge inputs

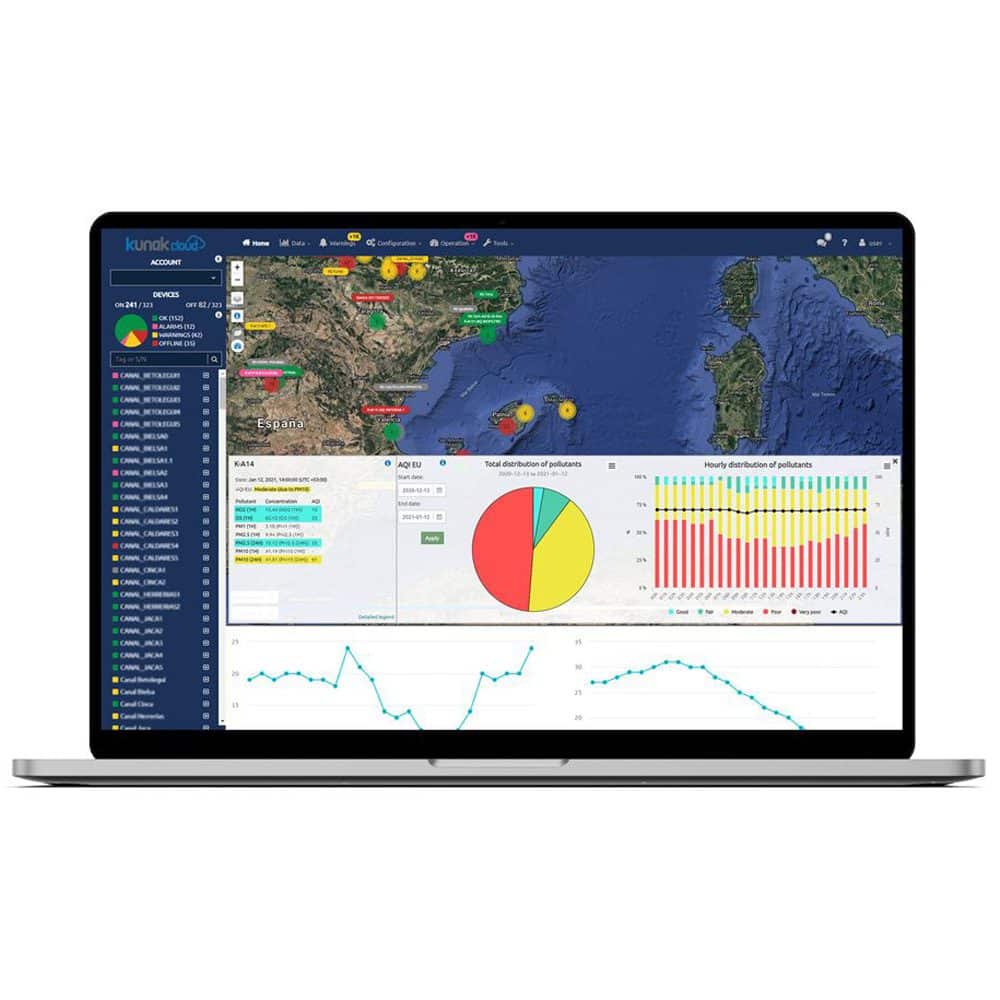

Software

ACCOUNTS MANAGEMENT

AQI DASHBOARD

AQI TOOL

BASIC GRAPHS

CMMS

CONTROL PANEL

CUSTOMIZED REPORTS

DATA VALIDATION

EVENTS LOG

HOTSPOTS IDENTIFICATION

LOCATIONS LOG

OPERATION ALARMS

PARTICLE SIZE ANALYSIS

POLLUTION SOURCES CHARACTERIZATION

TIME VARIATION
